COILERS

YOUR EXPERT PARTNER IN EXTRUSION

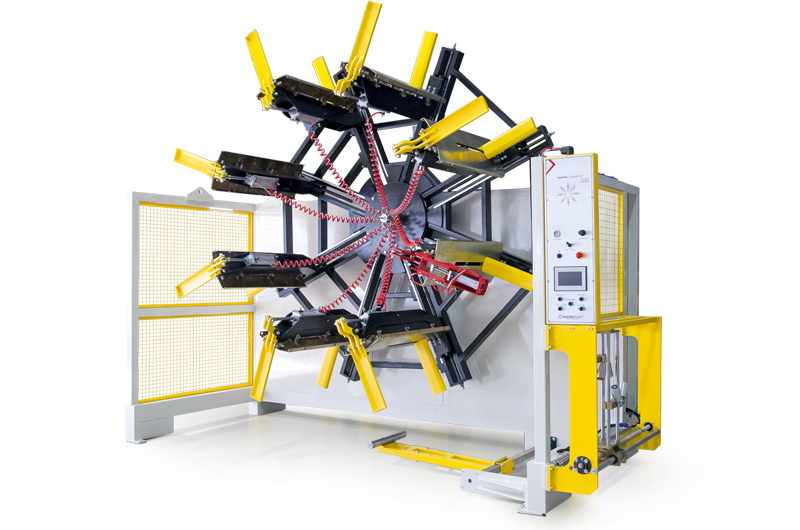

Kuatro -Plast presents coilers at three different dimensions for 16mm-32mm , 20mm-63mm and 50mm-125mm diameters produced fully automatic. We can add Pipe Diversion Unit to our torque controlled coilers as an option.

The possibility of easy packing is provided thanks to is mechanism designed for connection of the pipe end to the rill at the end of rill coiling.



Our coilers that are suitable to natural gas pipe production allows safety and obtaining of quality rill with the features of serial operation and being able to adjusted to desired torque value.
With PLC Touchscreen Panel Control Unit, Kuatro-Plast coilers allow you to control the diameter of the coiled pipe, speed and torque values easily.

Our coilers which we produced for 16-32mm and 20-63mm diameters works accurately in a synchronize manner with the production line.

TECHNICAL TABLE



Model Pipe Diameters Type Speed Flippers A (mm) B (mm) D Inner Diameter Min/Max. D Outer Diameter Max.
KPH-6316-32 mmDouble70m/min4300260350 - 700 mm1220 mm
KDC6320 - 63 mmDouble30m/min6500260400 - 1000 mm1520 mm
KSC11040 - 110 mmDouble / Single15m/min81000/550500900 - 2250 mm3250 mm
KSC12563 - 125 mmDouble / Single15m/min81000/6505001250 - 2500 mm3500 mm

FOR DETAILED INFORMATION, CONTACT OUR CUSTOMER REPRESENTATIVE VIA WHATSAPP.
