Die- Heads

Prev Product

Next Product

You may produce many products with different KUATRO Die-Heads materials. Different head designs for the materials having different properties are made by the experienced engineers of KUATRO.
Many innovations are developed by taking in to account especially the characteristics of the thermoplastic materials developed in the recent period in special head and mould design.

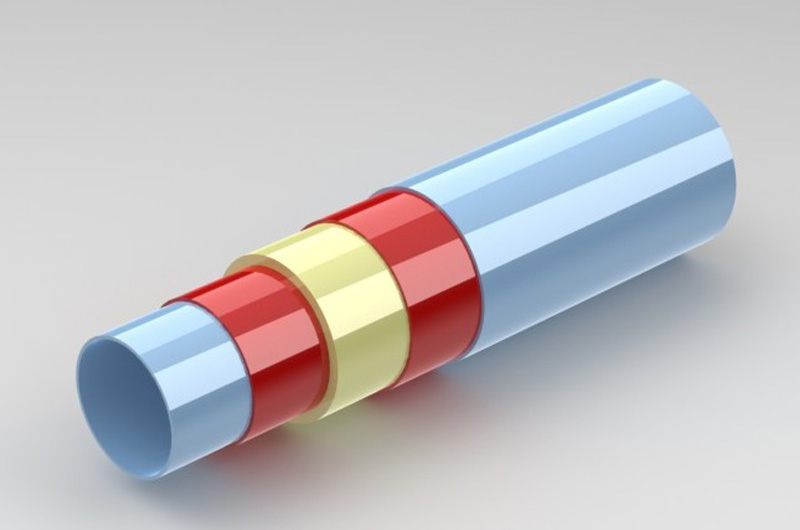

Many innovation for manufacturing of such type pipes are developed by us and offered to the service of the sector based on the fact that increase in the use of multi-layer pipes that are used by co-extrusion and the demand to such type pipes will increase in the future.
Double lines and heads which are developed to provide high efficiency in small diameter products have many advantages especially in terms of process.

TECHNICAL TABLE

Mono Layer Die Heads	Diameter Range (mm	Max. Output (kg/h)	Layer Thickness (mm)
KPH-63	10 - 63	250	15
KPH-125	20 - 125	350	22
KPH-160	20 - 160	450	30
KPH-250	50 - 250	600	45
KPH-400	90 - 400	700	80
KPH-500	110 - 500	800	80
KPH-630	160 - 630	1000	80
KPH-800	280 - 800	1100	90
KPH-1000	500 - 1000	1250	100
KPH-1200	710 - 1200	1400	100

Two Layers Die Heads	Diameter Range (mm)	Max. Output Main Layer (kg/h)	Thickness Output Main Layer (mm)	Max. Output Thain Layer (kg/h) Inner or Outer Layer (kg/h)	Thickness Thain Layer (mm)
KPH-2L-63	10 - 63	250	1.8 - 10.5	110	15
KPH-2L-125	20 - 125	350	1.8 - 20.8	150	22
KPH-2L-160	20 - 160	450	1.8 - 26.6	200	30
KPH-2L-250	20 - 160	450	1.8 - 26.6	200	30
KPH-2L-400	90 - 400	700	1.8 - 66.7	300	80
KPH-2L-500	110 - 500	800	1.8 - 55.8	350	80
KPH-2L-630	160 - 630	1000	1.8 - 57.2	450	80
KPH-2L-800	280 - 800	1100	1.8 - 58.8	500	90
KPH-2L-1000	500 - 1000	1250	1.8 - 73.5	560	100
KPH-2L-1200	710 - 1200	1400	1.8 - 70.6	650	100

Three Layers Die Heads	Diameter Range (mm)	Max. Output Main Layer (kg/h)	Thickness Output Main Layer (mm)	Max. Output Thain Layer (kg/h) Inner or Outer Layer (kg/h)	Thickness Thain Layer (mm)
KPH-3L-63	10 - 63	250	1.8 - 10.5	110	15
KPH-3L-125	20 - 125	350	1.8 - 20.8	150	22
KPH-3L-160	20 - 160	450	1.8 - 26.6	200	30
KPH-3L-250	20 - 160	450	1.8 - 26.6	200	30
KPH-3L-400	90 - 400	700	1.8 - 66.7	300	80
KPH-3L-500	110 - 500	800	1.8 - 55.8	350	80
KPH-3L-630	160 - 630	1000	1.8 - 57.2	450	80
KPH-3L-800	280 - 800	1100	1.8 - 58.8	500	90
KPH-3L-1000	500 - 1000	1250	1.8 - 73.5	560	100
KPH-3L-1200	710 - 1200	1400	1.8 - 70.6	650	100

Five Layers Die Heads	Diameter Range (mm)	Max. Output Main Layer (kg/h)	Thickness Output Main Layer (mm)	Max. Output Thain Layer (kg/h) Inner or Outer Layer (kg/h)	Thickness Thain Layer (mm)
KPH-5L-250	50 - 250	600	1.0-5.0	100	20

Outer Layer Adapter For All Spıral Distributor Pipe Head	Diameter Range(mm)	Max, Output (kg/h)	Layer Thickness (mm)
KPH-63	10 - 63	50	0.5 -2*
KPH-125	20 - 125	50	0.5 -2*
KPH-160	20 - 160	80	0.5 -2*
KPH-250	50 - 250	100	0.5 -2*
KPH-400	90 - 400	100	0.5 -2*
KPH-500	110 - 500	120	0.5 -2*
KPH-630	160 - 630	120	0.5 -2*
KPH-800	280 - 800	150	0.5 -3*
KPH-1000	500 - 1000	150	0.5 -3*
